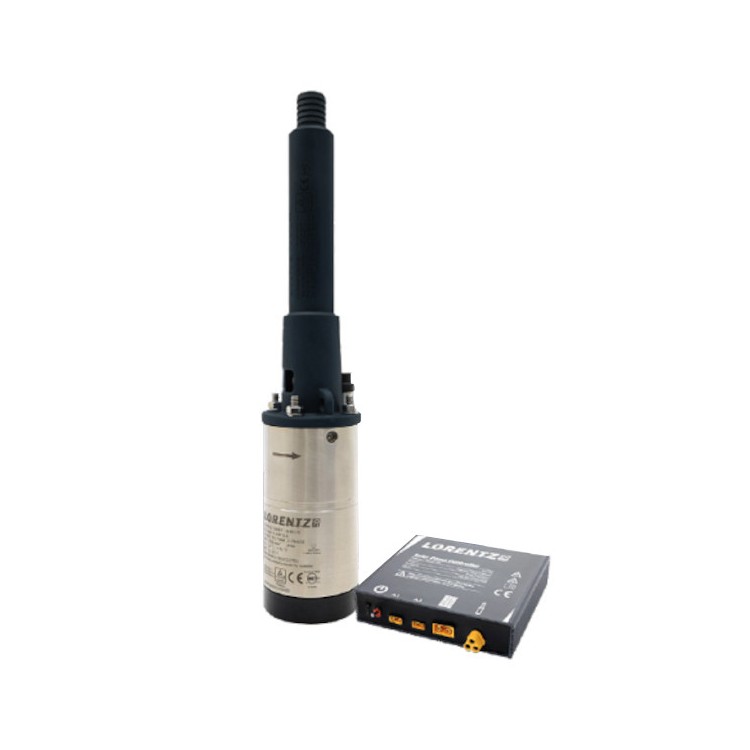

The PS2-100 pumps are a small 100W system designed to fit into low cost mass market systems. This ready to use product provides a solution that is very easy to install even by a non-professional ( no wiring, cable splicing or special connections required! ). The kit includes the controller, pump, motor connector cable and MC4 cable adapter. The PS2-100 system provides over 20,000 litres of water per day and pumps up to 40 metres high. Due to the fact that it is a submersible pump it can be used in various contexts such as wells, ponds, rivers, lakes or cisterns. Common applications include water management for livestock, irrigation, gardens... Direct connection to the photovoltaic without the use of batteries. This makes the system less expensive, more reliable and requires less maintenance.
Technical features:
Pump length: 455 mm
Pump diameter: 88 mm
Pump weight: 5.5 Kg
Controller height: 29mm
Controller length: 115mm
Cable length: 15m
Controller depth: 122mm
Weight of the roller: 700 g
Pump material: stainless steel, stainless steel
Controller material: aluminum, resin
Controller power: 0.15 kW
Controller voltage : 50V
Vmp** optimal controller : >34 V
Controller motor current : 6.0A
Controller efficiency: 98%
Controller protection level: IP68
Rated pump power: 0.15 kW
Pump efficiency: 83%
Pump motor speed: 700-2,500 rpm
Pump insulation class: F
Pump protection level: IP68
Pump immersion: max 50 cm
m 3of water per day: 28 m 3
Pump vertical distance: 17m
Included in the kit:
controller with connections for photovoltaic modules, pump, dry run protection and float switch for full tank
engine with its socket
helical rotor pump
motor cable with plug
Bracket for mounting the controller under the photovoltaic module
